200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

Product Categories
Guangzhou Kai Yuan Water Treatment Equipment Co., Ltd.
Contact Now

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

Brand Name : Kaiyuan

Model Number : KY-5gallon bottle filling machine

Certification : ISO9001, CE, SGS

Place of Origin : Guangzhou, China

MOQ : >= 1sets

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : >300sets/month

Delivery Time : 1-7working days(depand on raw materials stocking)

Packaging Details : export standard wooden case(plywood), no need to fumigate, suitable for shipping.

Name : 5 Gallon Filling Bottle Machinery

Rated production capacity : 200-252 bottle/hour

Bottle volume : 18.9L = 5gallon

Bottle size : 270*490*56mm

Rated input power : 1KW

Supply voltage : AC: 220V/ 380V 50Hz

Package size : 3200x1000x1570mm

Gross Weight : 408KG

Contact Now

200bph semi automatic washing-filling-capping bottle filling machine

double raw 3 in 15 gallon filling bottle machinery

PLC-controlled
Auto bottle washer, filler, capper process: Put in the bottle--thimerosal flushing--pure water flushing--drop bottle--push bottle--pure water filling--capping--the final product
The machine can pack kinds of non-carbonated liquid material widely, especially source, vinegar, syrup, beverage, confect beverage(also the cold beverage makes ice bag), soy milk, mineral water, greese bean curd and liquid.
Machine's characteristics:
a. All function adopt air-motive technology except the pumps, make the station moves smoothly, accurate positioning, clean the bottle. Air drive cap-press can overcome different bottle's height difference, make sure the cap pressed tight and accurate.
b. The machine highly structured, linear type. Professional design of the station, small volume, light weight, reliable mechanical capacity, and durable.
c. Adopt PLC control system, make the whole process full auto. d. High capacity of cap-arranging bin, but not more than 30pcs.

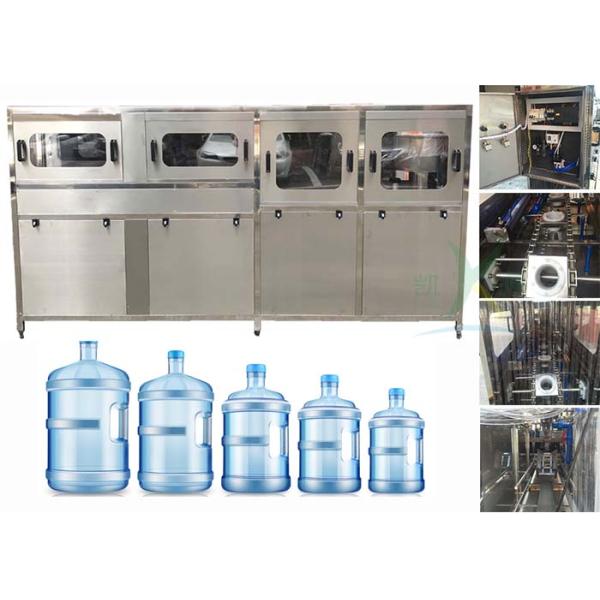

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon
200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon
Main technology data
Item
Specification
Rated production capacity
200 bottle/hour
Largest production capacity
252 bottle/hour
Bottle's volume
18.9Liters (5gallon)
Bottle's spec
ø270*490*ø56 mm
Cap's spec
ø58*40 mm (brain length 18mm, width 7.5mm)
Rated input power
1KW
Cap-arranging motor power
40W*2
Power of the pump: a. Medicine flushing pump
0.37KW 2pcs
Power of the pump: b. RO water flushing pump
/
Power of the pump: c. Filling pump
0.55KW 2pcs
Air cylinder: a. Shifting
0.55KW 1pc
Air cylinder: b. Pushing
SC50*450 1pc
Air cylinder: c. Capping
SC50*50 2pcs
PLC
K7M-DR20UE-AC
Supply voltage
AC: 220 ±5%/ 380 ±5% 50Hz
Rated current
14A
Net weight
335KG/ 330KG (luxurious/ common style)
Gross weight
408KW/ 408KG (luxurious/ common style)
Actual size
3060*800*1540 mm
Package size
3200*1000*1570 mm
Air compressor requirement
0.1m3 0.17m3/min 0.8Mpa/m3
Water supply
3m3/hour

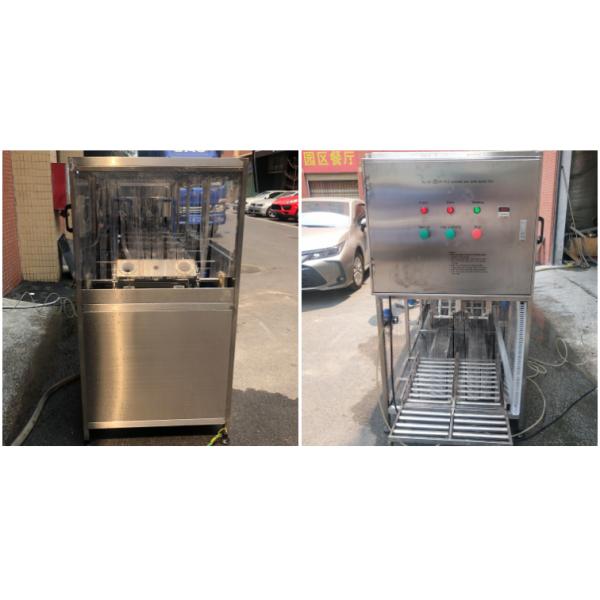

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

Single row--5gallon bottle filling machine:

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

200bph Semi Automatic Washing Bottle Filling Machine Double Raw 5 Gallon

Some else parts you may need as below^^

Thank you so much for your value time. Any questions please send us inquiry or chat now!

We will reply you within 24hours. whatsaapp/wechat/mob: +86 13660858152
